How to add the Online advanced list

Basic configuration

1. To create a new advanced list, click the Add advanced list button in the document workflow list.

2. In the Advanced List pop‑up window, fill in the required details for creating a new advanced list:

• Name – Enter the name of the parameter.

• Description – Provide a brief description of the parameter’s purpose.

• Import format – Select the file type used as the data source. OptimiDoc Cloud supports the following formats:

  • CSV

  • JSON

  • XML

• Type: Online list – A fully dynamic parameter. OptimiDoc Cloud loads the latest data from a file URL or REST API endpoint every time the user runs a workflow that includes this parameter.

• Import record path - Specifies the path to the individual items within a JSON or XML structure. This tells OptimiDoc Cloud where to locate the records inside the XML/JSON file or API response in order to extract the list values.
  CSV files do not use this field.

• Import value path – Specifies the JSON or XML field from which the final value will be read. This tells OptimiDoc Cloud which item within the XML/JSON structure should be used as the actual parameter value. For CSV files, this field defines the column that will be used as the value.

• Import label path – Specifies the JSON or XML field from which the displayed label will be read. This determines what the user will see in the list on the MFP panel or in the workflow interface. For CSV files, this field defines the column that will be used as the label.

  To get more information on how to work with the different import formats, see the section “How to work with different import formats in Advanced lists.”

• Is preloaded – Determines whether all items are displayed immediately or whether the user must perform a search first. When enabled, the full list is shown directly. When disabled, the user must type a search query in the search field before any items are displayed, which is useful for very large datasets.

• Authetication type - OptimiDoc Online list offers different authetication options for the requests:

  • None - No authentication is applied.

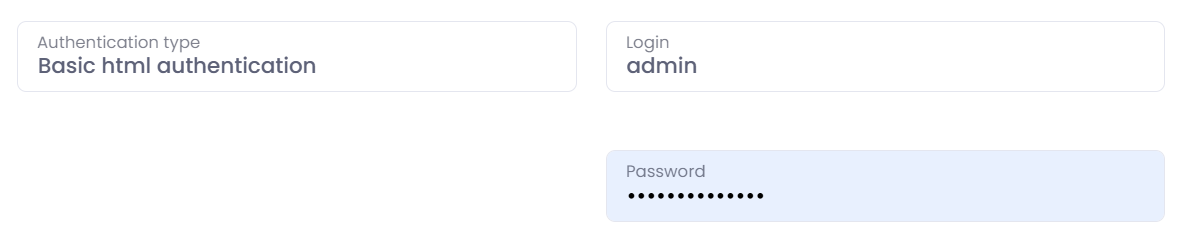

  • Basic html authetication - A simple built‑in authentication method where the system uses static credentials entered in the configuration.

    • Login - The username of the account that has permission to access the target URL.

    • Password - The password of that account

    •

  • From workflow - When using From workflow authentication, the Advanced List retrieves data using the same authentication method that is configured in the selected scan workflow.
    To use this option correctly, the final destination of the workflow must correspond to the chosen authentication method.
    Supported workflow‑based authentication types:

    • ONS – Uses the authentication defined in a workflow that has an ONS destination configured.

    • SharePoint – Uses the authentication defined in a workflow that has a SharePoint destination configured. Read more for detailed information about SharePoint list configuration: How to configure a SharePoint list.

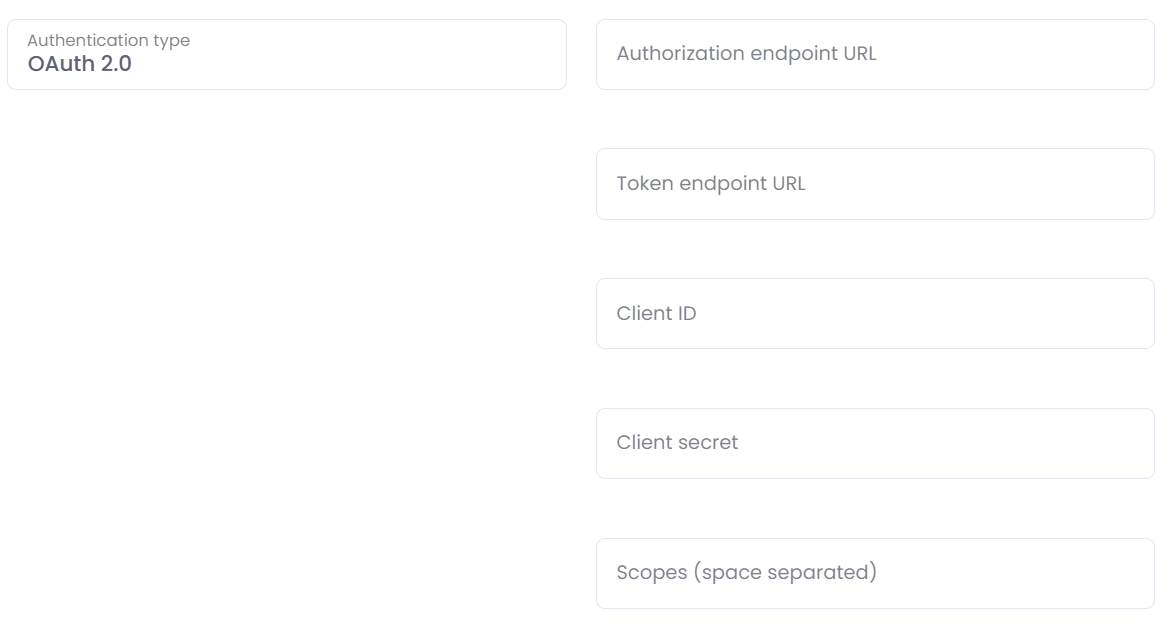

  • OAuth 2.0 - OAuth 2.0 is a secure industry-standard authentication method.
    To use this method, fill in the required details:

    • Authorization endpoint URL – Address where the user is redirected to sign in.

    • Token endpoint URL – Address that returns the access/refresh token.

    • Client ID – Identifier of the registered application.

    • Client secret – Secret key assigned to the application.

    • Scopes – Space‑separated permissions (e.g., users.read.all sites.readwrite.all)

      Redirect URI that you need for OAuth authetication: https://[datacentre_shortcut, eg. eu, uk, us].optimidoc.cloud/AdvancedLists/OAuthCallback

      Example: https://eu.optimidoc.cloud/AdvancedLists/OAuthCallback







Filtering options and Requests parameters

For Online Advanced Lists, filtering and request parameters define how OptimiDoc builds the request used to fetch list items from the source system.

In practice, you can control:

• request method (GET or POST),

• query parameters,

• URL placeholder replacement,

• request headers,

• search behavior,

• runtime values from system/terminal placeholders.

The table has four columns: Key, Value, Type, Location

Each row defines one dynamic part of the online request.

Parameter Types

Search string

Use this when the value should come from the user's live search text at the MFP terminal/web submit editor.

Typical use:

• Pass the user search into the query parameter q

• Inject search text into URL placeholder

• Define a full-text column for SharePoint mode

System parameter

Use this when the value should come from the OptimiDoc system parameters (placeholder formatting). This is the same placeholder mechanism used in other workflow areas, such as output filenames and formatted text fields.

Typical use:

• values based on runtime context,

• values derived from known placeholders.

Custom parameter

Use this for fixed literal values.

Typical use:

• Static tenant code

• Fixed mode flag

• Fixed API version parameter

Terminal parameter

Use this when the value should come from the MFP terminal as placeholder data available in OptimiDoc. This is resolved through the same placeholder engine as system parameters.

Parameter Locations

URL query

Adds row as query parameter:

• ?Key=ResolvedValue

Use for:

• endpoint filters,

• paging parameters,

• query-based search.

Request header

Adds row as HTTP header:

• Key: ResolvedValue

Use for:

• API keys,

• custom header routing,

• feature flags expected in headers.

URL

Uses row to replace placeholders in the List source URL.

How to use:

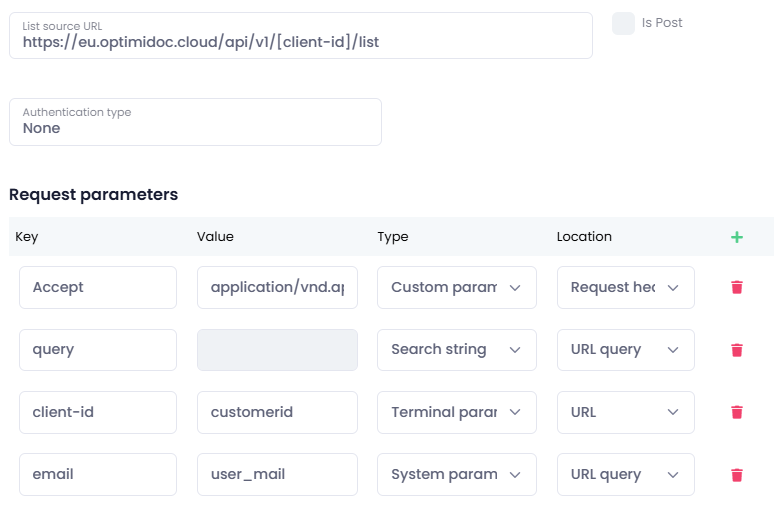

1. Put a placeholder in the List source URL, for example: https://api.example.com/customers/[customerId]/items

2. Add request parameter row: Key = customerId Location = URL Type = ... (Search/System/Custom/Terminal)

At runtime, [customerId] is replaced by the resolved value.

SP column

This location is used for the From workflow - SharePoint authentication mode.

How Filtering Is Resolved at Runtime

For online list lookup, OptimiDoc resolves request parameters in this order:

1. Replaces URL location placeholders in the List source URL.

2. Builds a query string from URL query rows.

3. Applies runtime system/terminal placeholder resolution to URL/query context.

4. Adds Request header rows.

5. Sends a request with the method from Is Post.

This makes it possible to combine static and dynamic filters in a single request.

SharePoint-Specific Behavior (From workflow - SharePoint)

When the auth type is From workflow - SharePoint:

• Parameter location is handled as SP column

• One search string row defines the full-text search column

• Non-search rows are treated as exact filters (Key = column, Value = filter value)

• Values can still be dynamic (System parameter / Terminal parameter) or fixed (Custom parameter)

Common Setup Patterns

Pattern 1: Standard API search via query parameter

Use when the endpoint expects a search in the query string:

1. List source URL = https://api.example.com/items

2. Add row: Key = q Type = Search string Location = URL query

Result example:

• https://api.example.com/items?q=invoice

Pattern 2: Search in URL path segment

Use when the endpoint expects a search directly in the URL path:

1. List source URL = https://api.example.com/items/search/[term]

2. Add row: Key = term Type = Search string Location = URL

Pattern 3: Static filter + dynamic search

Use when the endpoint expects both fixed and dynamic filters:

1. Row A: Key = q Type = Search string Location = URL query

2. Row B: Key = status Value = active Type = Custom parameter Location = URL query

Result example:

• https://api.example.com/items?q=invoice&status=active

Pattern 4: Header-based API key

Use when the source endpoint requires an API key header:

1. Add row: Key = X-API-Key Value = your-real-key Type = Custom parameter Location = Request header

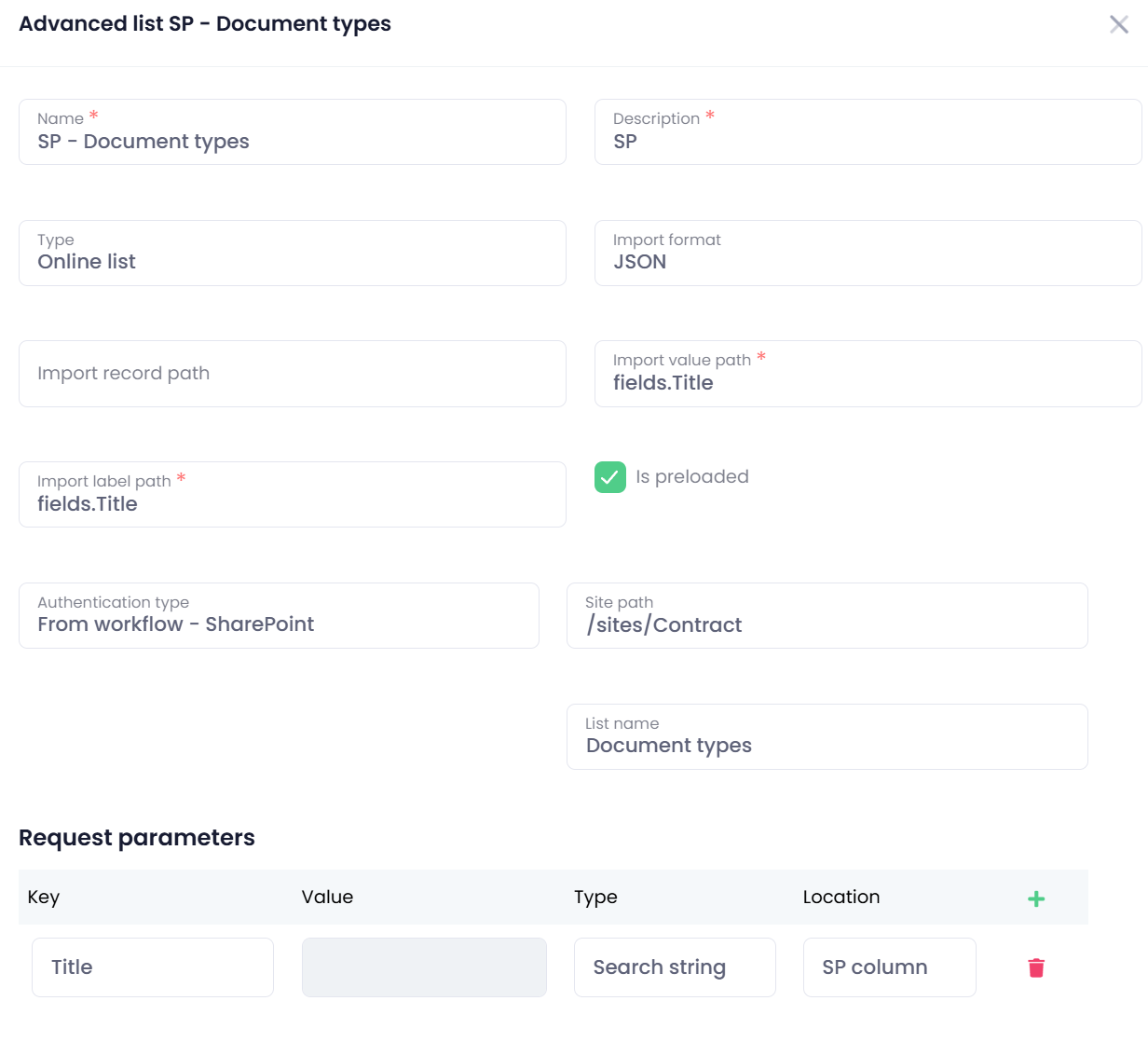

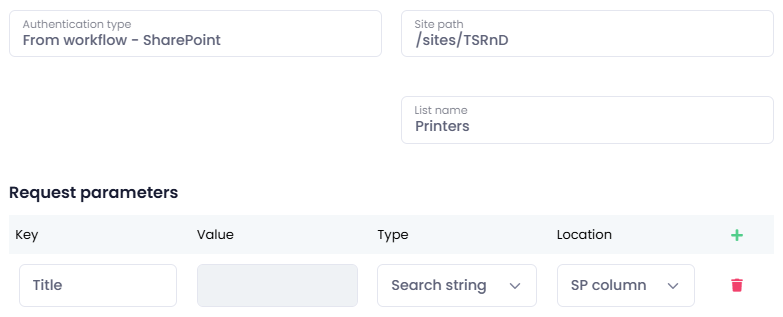

Pattern 5: SharePoint filtered lookup

Use in From workflow - SharePoint mode:

1. Row A: Key = Title (or your chosen full-text column) Type = Search string Location = SP column

2. Row B: Key = Department Value = Finance Type = Custom parameter Location = SP column

Common Mistakes

Search does not affect the results

Check:

• At least one row has Type = Search string

• The row location is correct for your source (URL query, URL, or SP column)

• For URL replacement, Key matches the placeholder name in List source URL

Placeholder in URL is not replaced

Check:

• Placeholder format in URL is [key]

• Matching row exists with Location = URL

• Row Key matches the placeholder name exactly

Header auth is not applied

Check:

• Parameter location is Request header

• The header key is valid and expected by the source API

SharePoint filtering behaves unexpectedly

Check:

• Auth type is set to From workflow - SharePoint

• SP column rows are used

• Only one Search string row is used for full-text column selection

• The remaining rows are exact filters

Best Practices

1. Start with one Search string query filter and confirm the lookup works.

2. Add static custom filters one by one.

3. Add URL placeholders only when the endpoint requires path-based routing.

4. Use Request header for API keys and transport metadata.

5. In SharePoint mode, keep filtering rows simple and explicit by column name.
